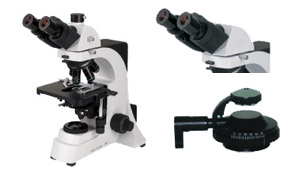

Supreme Research Microscope SK1000EB & SK1000ET
Product Features
- The Colour Corrected Infinity Optical System
- New sculpt and durable frame with inclined adjustment viewing head
- Good radiant system and mold-proof system
- Super wide stage and observation of two slides with swing-in-out condenser
The SK1000EB & SK1000ET research microscopess are loaded with the most popular features, including a swing in-out condenser and inclined adjustment 0-40 degree viewing head. This scope is built on a heavy, durable frame. Standard features include: 10X/22 High Eyepoint eyepiece, reverse nosepiece for easy access to the stage, and 110/220V automatic switching electronics. The scope can also be equipped with a number of optional accessories including: Polarization, Phase Contrast, Trinocular head, Fluorescent attachment.
Head |
Seidentopf Binocular Head with inclined adjustment from 0-40° , rotate 360° |
Eyepiece |
Interpupillary Range 47mm-76mm |
Objective |
Reverse quintuple nosepiece
Infinity Plan Achromatic Objec tives 4X/0.1, 10X/0.25, 20X/0.40, 40XS/0.65, 100XS/1.25 oil |
Focus |
Coaxial coarse&fine focusing adjustment
Fine Adjustment: Graduation of 2um | Tension Control knob |
Stage |
Double Layers Mechanical Stage with coaxial drive control
Size: 180mm X 160mm | Travel range: 75mm x 50mm |
Condenser |
ABBE Condenser NA1.25,swing achromatic condenser with iris diaphragm & filter |
Illumination |
Built-in Illumination adjustable Brightness Halogen Lamp 12V30W, 85-230V 50Hz-60Hz variable power supply |
Option |
Trinocular , Mirror, Simple Polarizer, Phase Contrast turret , 60x, 100X
Darkfield Condenser, CE 220V 50Hz Power Source, Eyepiece 10X/22mm, Ceramic Stage, Digital Camera Adapter, Infinity Optic System |
 Printer Friendly Version
Supreme Research Microscope SK-500EB & SK-500ET
Product Features
- The Colour Corrected Infinity Optical System
- New sculpt and durable frame
- Good radiant system and mold-proof system
- Super wide stage and observation of two slides with swing-in-out condenser
The SK500EB & SK500ET research microscopess are loaded with the most popular features, including a swing in-out condenser and a powerful 100X objective (oil). This scope is built on a heavy, durable frame. Standard features include: 10X/22 High Eyepoint eyepiece, reverse nosepiece for easy access to the stage, and 110/220V automatic switching electronics. The scope can also be equipped with a number of optional accessories including: Polarization, Phase Contrast, Trinocular head, and a number of different objectives.
Head |
Seidentopf Binocular Head inclined at 30° , rotate 360°
Interpupillary Range 47mm-76mm |
Eyepiece |
PL10X/22mm High Eyepoint eyepieces |
Objective |
Reverse quadruple nosepiece
Infinity Plan Achromatic Objectives 4X/0.1, 10X/0.25, 20X/0.40(option), 40XS/0.65, 100XS/1.25 oil |
Focus |
Coarse adjustment: Range of 23mm
Fine Adjustment: Graduation of 2um | Tension Control knob |
Stage |
Double Layers Mechanical Stage with coaxial drive control
Size: 175mm X 140mm | Travel range: 76mm x 50mm |
Condenser |
ABBE Condenser NA0.9/1.25,swing achromatic conde nser |
Illumination |
Built-in Illumination adjustable Brightness Halogen Lamp 6V30W, 100-240V 50Hz-60Hz variable power supply |
Option |
Trinocular, Mirror, Simple Polarizer,Phase Contrast turret, 100x Darkfield Condenser Quintuple nosepiece, Digital camera adaptor etc. |
